Advanced GPS Tracker

Professional Vehicle Tracking Solution

Product Features

Hardware Features

  • Unit size: 95(L) × 77(W) × 30(H)mm
  • Weight: 220 g
  • Aluminum case
  • Case Environmental Characteristics:
  • Operational Temperature: -25°C to +70°C (board temperature)
  • Storage temperature: -40°C to +80°C
  • 4 digital outputs (200mA max)
  • 6 digital inputs (5 negative inputs, 1 positive input)
  • 1 analog input (0 to +3.3 volt)
  • 1 RJ11 port for voice I/O
  • 1 RJ45 MULTI port for serial RS232 (low speed 9600 Baud) and Direct GPS output RS232
  • Electrical Characteristics: Input Voltage: +6~37 Volt DC regulated / 2A-MAX (GSM Transmit)
  • Power Consumption:
    1. 12V - 100~320 mA (GPS & GSM/GPRS Online)
    2. 12V - 60 mA (GPS online, GSM standby)
    3. 12V - <20 mA (GPS Power Down, GSM Standby)
  • Backup Power: 1100 mAh Li-ION battery
  • Memory Backup: EE prom
  • Unleaded version modules (RoHS compliant)

Firmware Features

  • SMS mode / SMS+GPRS mode
  • Upload/download settings, locations, and update firmware via GPRS
  • Open platform for two-way communication between control center and MDT
  • Special protocol for GPRS with handshaking to minimize costs and data loss
  • MCU dead lock protection
  • Main power loss detection
  • Input power monitoring (below/above set value)
  • Multiple location memory requests
  • Battery back-up in case main battery is CUT-OFF
  • Auto GEO-Fencing (activated when drivers remove vehicle keys)
  • Unlock Doors: Remote door unlocking via SMS commands
  • SOS panic button: Emergency data SMS and hazard light activation
  • Disable vehicle: Remote immobilization via mobile or web
  • Alarm Alert: Integration with vehicle alarm system
All specifications are subject to improvement without prior notice as part of our continuous product development process.

Technical Specifications

GPS Specifications

Chipset:
SIRF III chipset version
Frequency:
L1, 1575.42 MHz
C/A Code:
1.023 MHz chip rate
Channels:
20
Accuracy (Open Sky):

Position: 10 meters, 2D RMS

7 meters 2D RMS, WAAS corrected

1-5 meters, DGPS corrected

Time: 1 microsecond synchronized to GPS time

Datum:

Default: WGS-84

Other datums available by request

Acquisition Rate:

Reacquisition: 0.1 sec avg

Hot start: 1 sec avg

Warm start: 38 sec avg

Cold start: 42 sec avg (Open Sky)

Dynamic Conditions:

Altitude: 18,000m max

Velocity: 736 m/s max

Acceleration: 4G max

Jerk: 20m/s max

RF Interface:
Minimum signal tracked: -159dBm

GSM Modem Specifications

Power Supply:
3.4V - 4.5V
Power Saving:
3mA in SLEEP mode
Frequency Bands:
Tri-band: EGSM 900, DCS 1800, PCS 1900 or EGSM 850, DCS 1800, PCS 1900
Compliance:
GSM Phase 2/2+
Transmit Power:

Class 4 (2W) at EGSM900

Class 1 (1W) at DCS1800/PCS1900

GPRS:

Multi-slot class 10

Mobile station class B

Temperature Range:

Operation: -25°C to +70°C

Storage: -40°C to +80°C

Data:

GPRS downlink: 85.6 kbps max

GPRS uplink: 42.8 kbps max

Coding schemes: CS-1 to CS-4

Protocols:
PAP, TCP/IP, PBCCH
CSD:
2.4-14.4 kbps, non-transparent
SMS:
MT, MO, CB, Text and PDU mode
SIM Interface:
1.8V, 3V SIM cards

Standard Kit

GPS Tracker Unit

GSM Antenna

GPS Antenna

RS232 Cable

I/O Cable

Advanced GPS Tracker Details

Optional Accessories

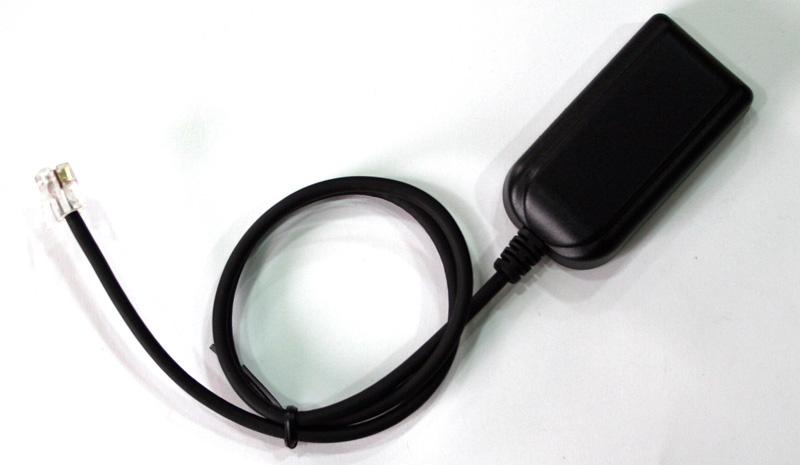

Bluetooth Dongle

Bluetooth Dongle

Wireless connectivity solution

Add-on
Speaker & Microphone

Speaker & Microphone

Voice communication accessory

Audio Kit
Relay Box

Relay Box

Advanced control module
